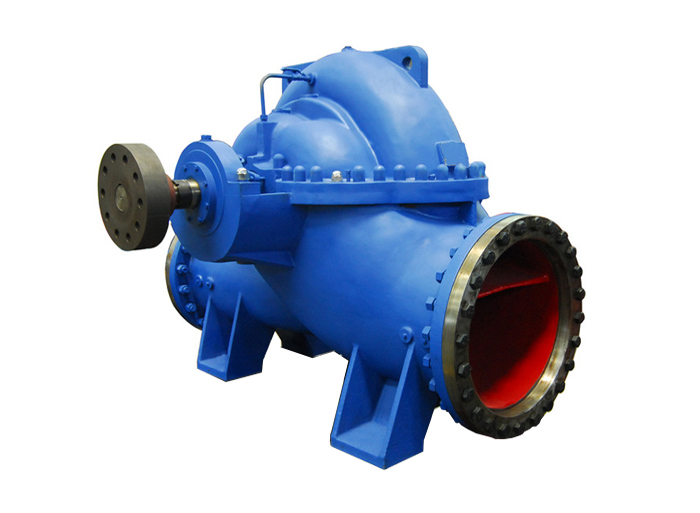

The MS series split case double-entry centrifugal pump is a single impeller, double-entry centrifugal pump which adopt excellent hydraulic model. It have the features of wide range, high efficiency, stable performance, easy maintenance and long service life.
The axially split design allows easy removal of the top casing and access to the pump components (bearings, wear rings, impeller, and shaft seal) without disturbing the motor or pipe work. The independent bearing housing allows for ease of maintenance without removing the top casing. The double volute design reduces the radial load on the shaft, extending component life, minimizing vibration and providing quiet operation.
Main Performance Data
Flow: 70 - 22400 m3/h
Delivery Head: 8-150m
Outlet Dia.: 100-1,200mm
Working Pressure: ≤ 4Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃-80℃
E.G.: 250MS24 (A/B/C...) 250: Inlet diameter is 100mm MS: Single stage double entry split case pump (Traditional Model)
24: Rate delivery head is 24m
A(B,C....): Impeller code
General industrial water supply and discharge,
Irrigation & Drainage,flood disposal,
Oil, gas & petrochemical liquid processing,
Hot water transferring, raw water intaking,
Sea water desalination & transferring,
Power station water circulation,
Factory & warehouse & residential fire fighting,
Mining water supply & drainage, Water treatment.
Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation:
